CyberPower UPS Backup Serial Protocol and Interface

Serial Interfacing with a CyberPower UPS

By Jeff Mayes, October 2018

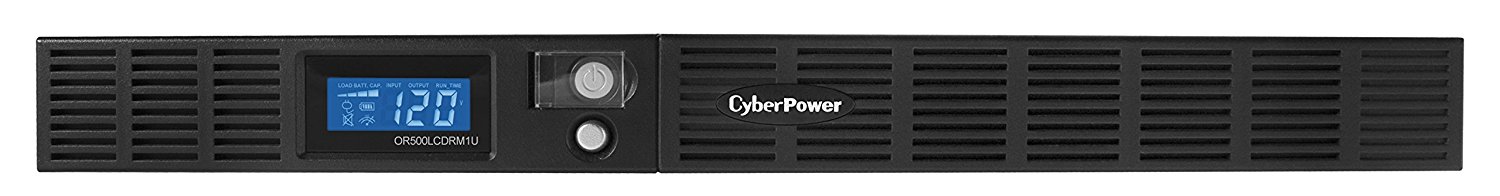

This all started when I decided we needed a UPS to integrate into our products and searched with the following criteria.  Must be low cost, 300w,  rack mounted, have batteries that load into the front and have a serial port.  Of course APC and Tripp-lite were on top of the list but now they only have USB or dumb ports for connection plus cost was prohibitive.  Now CyberPower comes into the picture, it fit all my requirements AND had a neat display to add to the WOW factor (more on the display later).  Thinking I had found the perfect solution I ordered one and with great disappointment found it had a serial port that does NOT support serial data!  CyberPower marketing their product as having a serial port was plain not accurate.  In fact pins 2 & 3 (the data pins) of the port are not connected to anything!!  The only functions available from that port are on/off hardwired signals for “Load on battery” and “Load on line”, it had one input to shut down the unit, not very functional at all.  It did have a USB pot which DOES support data transfer but there is no published protocol and home-brew interfacing to USB is a major job which is why I ruled out the other UPS’s.  However there was a port for a plug in optional network card which also could provide useful data but at a cost as much as the UPS which was not a cost efficient solution.

Needing to interface the UPS to our products I decided to reverse engineer the available ports.  USB as mentioned earlier is very tricky and time consuming to make a driver for and would require a 3rd party microprocessor to convert it to serial so that is ruled out.  The actual serial port is useless so that left only the network option port.

I ordered the network option board and joyfully found an internal simple 4 wire interface, gnd, v+, rx & tx which turned out to be good ole serial data in TTL form (and not even inverted).  After some sniffing I easily found it communicated at 2400 baud and used plain English commands (mostly single keystrokes, wow!)  If anyone has done interfacing to APC serial ports you will notice much similarity.  I also found that since the rx/tx signals were positive polarity I could just wire them to a standard computer serial port without any drivers and get error free data communication (again WOW!).

Data I discovered included on/off line, line voltage, battery charge, load percentage, estimated battery life, frequency and MORE!  Functions that could be sent include Battery quick test, Battery Deep test, UPS shutdown and UPS reboot (the latter will shut down the ups for a few moments and turn it back on, perfect to remote reboot the equipment)

Now that I found the interface I needed to make it easy to connect to the UPS, I need this solution for many installations so it became apparent that a slide in board that would fit just like the option board with a DB9 serial connector was the best solution.  I needed to order a large quantity of boards to make them cost efficient so I have extras!!

As I said earlier I am running directly from the TTL port to a computer RS232 port, not 100% proper but works great for short runs. I decided for situations where there needs to be a long run of cable or if your just too geeky to get over putting TTL into a RS232 port I put a driver circuit on the board that can be optionally added.  By adding a MAX2232 some caps, 5v lp reg and cutting 2 traces makes it a fully compliant RS232 interface.

I am making the boards available on Ebay and my website ( for $29 complete with connector or $39 with the driver circuit added.  Any CyberPower UPS that will accept a RMCARD202 or RMCARD205 network card should work.  Want to roll your own?  Read on for all the info you will need.

CyberPower UPS Network card internal serial protocol

Serial Setup: 2400 Baud, No Parity, 8 Bits, 1 Stop bit.  (2400,N,8,1)

Commands sent to the UPS must end with x0D (CR)

Data responses start with “#” and end with x0D (CR)

Basic UPS Commands

Command to UPS (Add CR,x0D) Result
T self test
S(0x2E)1R9999 Sleep
W(0x2E)1 Wake up
S(0x2E)1 turn off now
TL Deep battery test
CT Cancel deep battery test
S(x2E)1R0000 reboot now
S03R0003 Reboot in 3 (minutes)
S03 Shutdown in 3 minutes
C Cancel reboot or shutdown
C7:1 Turn buzzer on
D #  I116.0  O116.0  L000  B100  F060.0  R100  S€%À€€  (Spaces added for readability)
Unrecognized cmds #-3 (error)

Everything above is pretty self evident the “(0x2E)” is the hex 2E char that needs to be inserted.  The “D” command provides all the dynamic data from the UPS.  The UPS will NOT push any data, you must poll the UPS (every 3 seconds works nicely) using the D command to receive the data.  Next you must parse the received data watching for the identifiers which are again plain English I,O,L,B,F,R,S  the last 5 bytes of data are the on/off flags that provide on/off online/offline, etc status.  See the tables below.

“D” command breakdown

#I116.0O116.0L000B100F060.0R100S€%À€€  (37 bytes total)
Identifier Typical Data Bytes Description
# 0 Start Char
I 116.0 5 Input Volts
O 116.0 5 Output Volts
L 000 3 Load %
B 100 3 Battery %
F 060.0 5 Freq Hz
R 030 3 Run Time Minutes
S €%À€€ 5 Status Bits

The 5 status bits of the “D” string indicate various on/off conditions of the UPS such as on-line, line failure, running, etc.  Most of the bits stay static, the only meat I found was in the first two bytes and is detailed below.  If anyone finds more information please email and I will update the page.

The normal running online state of the status bits (In Hex)  are 0x80,0x84,0xC0,0x88,0x80

Status Bytes 1 & 2 Definitions

Byte-Bit Normal State Description
s1-1 0 ?
s1-2 0 ?
s1-4 0 ?
s1-8 0 ?
s1-16 0 UPS Good = 0
s1-32 0 Line Fail = 1
s1-64 0 Batt Low = 1 (Immanent Fail)
s1-128 1 UPS Testing = 0
s2-1 0 ?
s2-2 0 ?
s2-4 1 UPS Running = 0
s2-8 0 ?
s2-16 0 ?
s2-32 0 ?
s2-64 0 ?
s2-128 1 ?

There are additional commands to read out static info from the UPS such as Model, Serial#, Load rating, Etc.  I did not need any of this info for my project so this is not a complete reference, again if anyone can add to this you are welcome to email me your results and I will update this page as needed.

Static Info Commands

P1 #12,140,90,10,300 ?
P2 #0500,0300,120,057,063 VA, W, V,min fq, max fq
P3 #06.0,2×1,007.0,00 ?
P4 #OR500LCDRM1U,BF00701ICM1,000000000000,CyberPower Model, Firmware, ?, Manf
P5 #120 ? (3 responses)
P6 #140 Min volts?
P7 #90 Max Volts?
P8 #10,20,30,40,50,60,70,80,90 ?
P9 #Çð ? (Bits/Flags)

Hardware connections

Net card connector (looking in the card box) (J2)

08642<–Pin #’s (0=10)



97541<–Pin #’s

Net Card Connector To PC RS232 Connections

J2 (UPS) Description J1 (to computer)
1 Gnd –>DB9p5 (GND)
2 input (to ups) –>DB9p3 (TX)
3 output (from ups) –>DB9p2 (RX)
4 V+ (12V)
5 (unused)
6 (unused)
7 ? Connected but not used
8 nc
9 nc
0 nc (display mod) 10k –> DB9p7 (RTS)

Available Plug in Interface Boards From Ebay and

Basic Interface with no Driver $29.00

See in Store

Full Interface with RS232 Driver $39.00

See in Store

 Finally “The Display”

There was another disappointment here in that the display would only come on during an “Event” or when you first plug it in, during regular operation is would be off and black.  You are required you to hit a button to bring it on and check status by repeating the button push’s.  Not so much WOW factor in that!!!  I found no software work-around, no commands would tickle the display unless I kicked the ups into action which was out of the question for normal use.  After much contemplation I came up with a Hardware hack where by adding one wire internal to the UPS and a 10k resistor on my board I could pulse the RTS pin of the serial interface and simulate a push of the front panel button thereby bringing on the display and changing modes to add action to the readout.  Below are pictures of the Hack on a OR500L ups (other models may be slightly different).  This is completely optional and you MUST be able to do internal soldering work and pulse the RPS pin with your software, I do it along with the “D” command every three seconds.  It keeps the display on and cycling through the available screens so anyone looking at the setup sees some action.

Wire to add for Display hack Connect Wire to Pin 2 of the card connector
Connect wire to “Orange” wire of display connector

 Hope this helps someone out!

Jeff Mayes, Jmayes Engineering,,

16 Replies to “CyberPower UPS Backup Serial Protocol and Interface”

  1. You CAN have a usable Serial Interface on CyberPower UPS Backup’s! Read on for all the information to do it.

  2. I want to use python to communicate with rs232. so I use pyserial to write info to cyberpower. But I have some confuse.

    port = serial.Serial(port=’COM5′, baudrate=2400, bytesize=8, parity=’E’, stopbits=1, timeout=2)

    but did’nt work. and the cyberpower is not shutdown.

    1. Do not use Parity, the setting is 2400,N,8,1. Also you can’t connect to the built in serial port (it’s not really a serial port). You must wire as described above to the Network expansion port. Good luck!, Jmayes

  3. Hi there! Someone in my Myspace group shared this site with us so I came to check it out. I’m definitely loving the information. I’m bookmarking and will be tweeting this to my followers! Wonderful blog and wonderful design.

  4. Love the Cyberpower RS-232 interface!!! Works great! I’m using it with a Cyberpower PR1500LCDRT2U UPS, which is responding with some additional information following a “D” command. Thought you might be interested. See the the chart below). I’m not sure I’ll tear into the status bits like you did, but there’s a lot more of them now. I certainly don’t want, or need, any credit. You did all the work designing the board; I’m just having fun tying it into my Arduino. Of course, I forgot RS-232 and TTL are inverted from each other, so had to throw in a 74LS04. Thanks, again!




  5. Hi! Im actually sending “D” command to poll data from the UPS without receiving something. im using the CiberPower 1500VA. How exactly should I send the Command?

    Best regards!


    1. It only takes the capital letter “D”, no cr or lf. If your baud rate is wrong (2400) or the signal is inverted it will ignore you. Are you using one of my boards? If not you don’t have to invert the signals coming from the connector.

  6. Hi Jeff,
    Thanks so much for sharing your research in getting real serial data from the Cyberpower expansion slot! When I put a handmade adapter into my PC1500PFCLCD, I had trouble getting data until I reversed the order of the pins you show. I think the correct layout looking into the expansion slot is the mirror of what you show:

    As you said, the logic-level serial output is not inverted and works (at least over short wires!) even when directly connected to an RS-232 port. I saw ~1.3Vpp data from the UPS – wimpy even for a 3.3V chip.

    My data, #I0.0O120.0L0B99V25.6F0.0H60.0R188C5Q0.0J0E0Sxx doesn’t have John P’s temperature, but it does have ‘V’ for actual battery voltage (plus some other mystery fields).

    My real question is about the output after the MAX232. Yes, it’s proper RS-232 levels, but that chip inverts the signals, so a logic LOW in creates a +7V (or whatever) out. How can that possibly work with input logic levels that are not inverted to begin with?

    Thanks again for publishing your data, and for making adapters available!


  7. Jeff – Oops. Little problem with X1/X10 switch on my scope probe. The signal from the UPS was really -0.2V->+12.3V. Especially given the polarity, I think that’s actual RS-232 levels, not TTL (or other logic) level. Having double checked stuff, I’m pretty confident in that observation.

    But that doesn’t address the question of how the output of the MAX232 inverter ever worked with that input. Any thoughts?



    1. Hi Jim, Welcome to my site and thank you for the detailed info you provided! When I use the Max232, it has 4 inverters to work with so I use two to invert the signals to drive the final two for the output. When I did my testing I did not see levels more then 5v on the signal pins and traced them directly to the MCU on the board. It uses a 5v microchip mcu.

  8. Cyberpower has made a protocol change starting with the new “Silver” bodied units. Initially all values had a fixed amount of bytes. For instance the ‘B’ perimeter which reads battery percentage would send ‘B100’ for 100% and ‘B090’ for 90%, now with the new protocol 100% would still send ‘B100’ but when less then 100 the leading zero will be dropped therefor 90% will now send ‘B90’. I initially did my host programming using fixed positions from the data string and this new protocol boke it. Now you must trigger your decode on the target perimeter character then watch for the next perimeter character and calc the length of your target string before extracting the data. It also seems they have changed the order of the perimeters in the data string depending on which model your dealing with.

  9. What is the name of the connector on the net card? Trying to find on Google but not seeing a match. I’d like to make a cable connector for the 4 pins.

    1. Sorry I missed your question. The connector is a PCB edge connector and there really are no standalone matching connectors I know of, If you take some coperclad board and cut it to size you can scribe lines in it to make the pins, make it long enough you can solder to the back of each trace without the solder going in to the connector. I have had to do this in the past on some projects. I just posted the dimensions of the connector in another post. J

  10. Hi Jeff,

    Would you mind sharing the dimensions of the card? I’d like to make my own based on the ESP8266.


    1. The body of the board dimensions are 1.65″ x 2.65″. The connector centered on the back is 0.6″ x 0.275″ It is a 10 pin connector with 5 on each side, 0.250″ spacing, the pins are centered on the connector block.

      If you would like to purchase the bare board I posted it on my site, you could glue the esp to the board and just run wires to make your project. There is a place to put a 3.3v regulator on there too.

      Good luck with your project! Jeff/Jmayes
